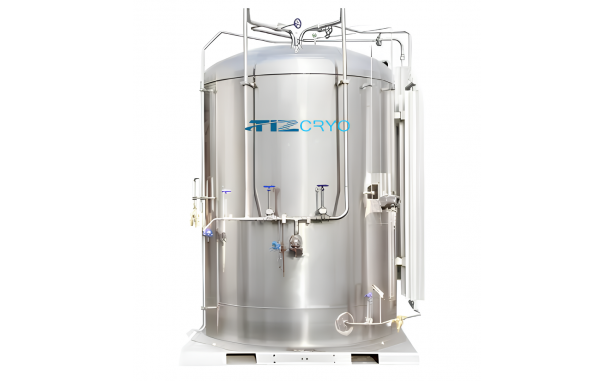

The Tiz Carbogas company offers cryocylinders that are used for the delivery and storage of cryogenic gases, such as LIN, LOX, LAR, LNG of various volumes from 40 liters to 3000 liters and configurations: horizontal and vertical, stationary or mobile.
- one 200 liter cryocylinder will provide storage of 2560 liters of gas;
- works without electricity consumption;
- significant reduction in costs for transportation and maintenance of cylinders;
- easy equipment maintenance, 1 person can handle it;
- with constant, minimal product selection there are no losses;
- the material of the inner vessel is made of stainless steel, ensuring the production of a pure gaseous product;
- safe use: the production pressure of the cryocylinder is up to 16 bar, while work with cylinders takes place under a pressure of 150 bar;
- does not fall under the mandatory registration of pressure vessels.
this is a cryogenic tank operating under pressure, with vacuum-perlite insulation and can provide constant automatic delivery of a gaseous product under a given pressure to the consumer network. It can also be used for transporting, storing and dispensing liquefied oxygen, nitrogen, argon, carbon dioxide.

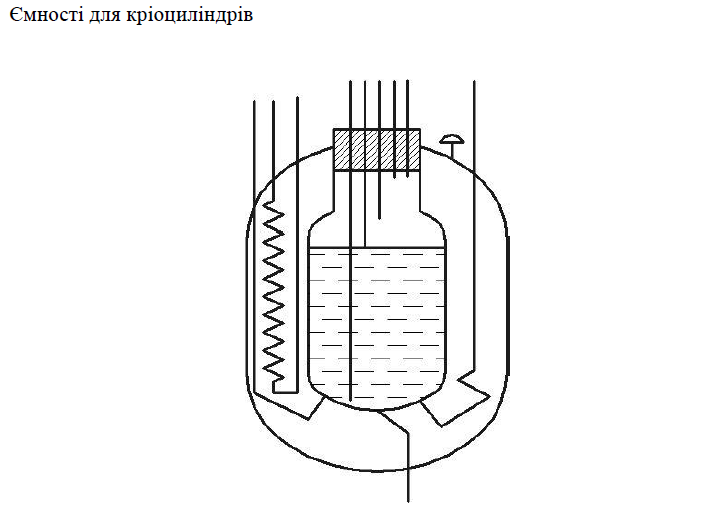

The cryocylinder consists of an internal and external container, the space between which is filled with perlite and evacuated. Due to this, excellent storage properties of the cryoproduct are achieved.
The operating principle of a cryocylinder is based on creating pressure in an internal vessel filled with liquid. Raising and maintaining pressure in the vessel is ensured by a system consisting of a lift regulator and a pressure rise evaporator. From the cryocylinder, the product enters the built-in evaporator, from where gas is supplied to the consumer at a set pressure.
