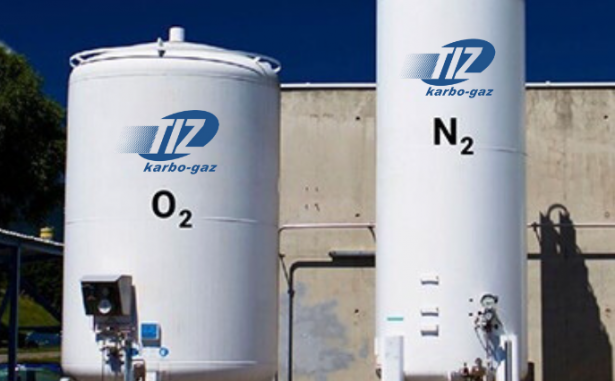

Stationary cryogenic vessels

We manufacture stationary horizontal and vertical cryogenic vessels that operate under high pressure and are an integral part of modern technologies for storing and transporting various gases and liquids. They are made from high quality materials and ensure durability and reliability in operation. Our company offers a wide selection of cryogenic stationary containers of various volumes, configurations and purposes. They meet high quality and safety standards and can be used to store various gases such as oxygen, nitrogen, argon, as well as liquid nitrogen and oxygen.

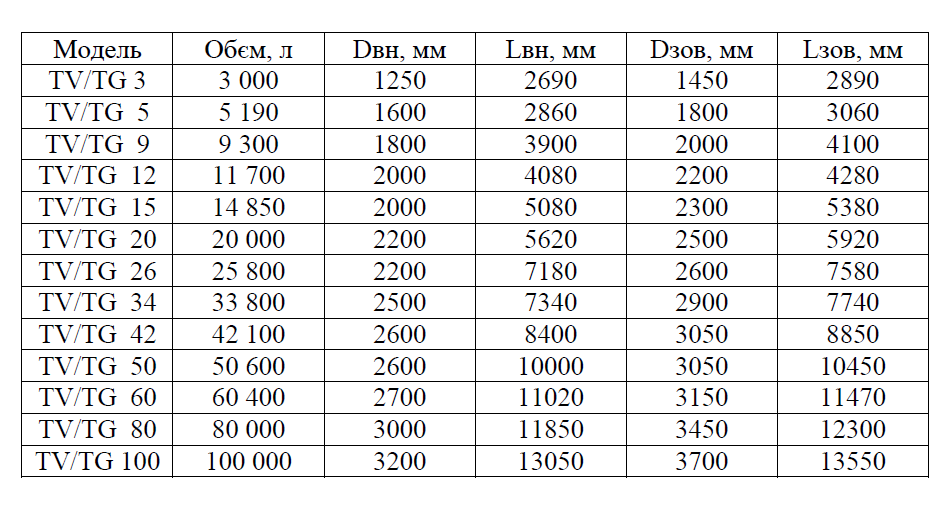

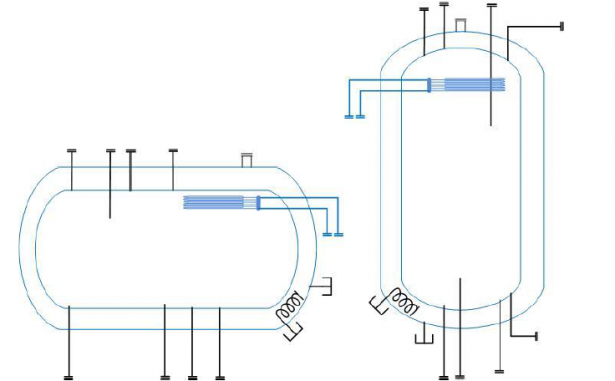

Container Configurations

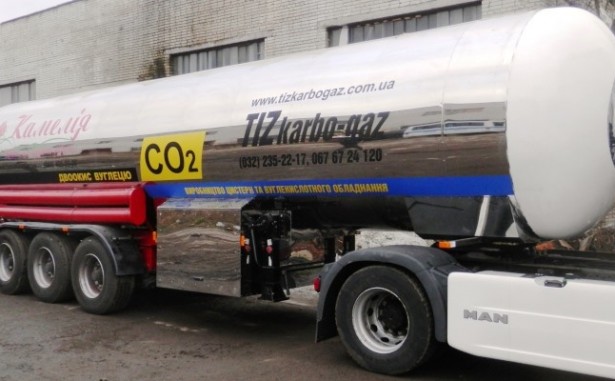

Tankers

PE "TIZ-Karbogaz" has all the licenses, tools, qualified specialists and extensive experience in the manufacture of tank trucks for the transportation of liquefied gases. The customer receives a turnkey tank truck, including all necessary registration processes. One of the most undeniable advantages of our cryogenic tank trucks is their low weight, high quality manufacturing using our own know-how, the use of spare parts, materials and fittings from leading European manufacturers. One of the company's new directions is the design and turnkey manufacturing of tank trailers for transporting food products (concentrates, milk, sunflower and palm oil, etc.). Particular attention is paid to the quality of work performed - from the insulation of the tanker to the installation of pumping groups using high-quality fittings. Modifications of tank trucks depend 100% on the wishes of the customer.

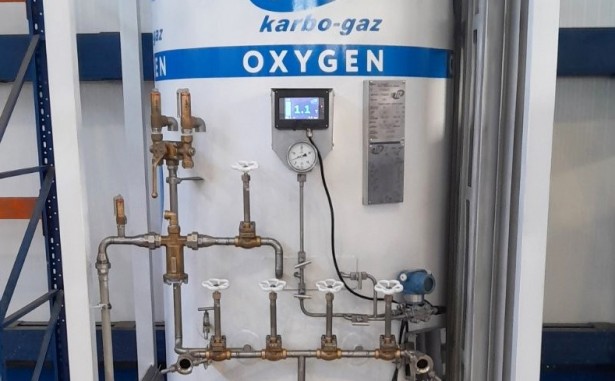

Gasifier

PE "TIZ-Karbogaz" has successfully launched the production of gasifiers equipped with high-quality working and protective fittings from global manufacturers HEROSE, DANFOSS, etc., as well as GEA heat exchangers. Our gasifiers are designed to convert CO2, O2, Ar, N from liquid to gaseous state.

A container operating under pressure with vacuum-perlite insulation can provide automatic and constant delivery of a gaseous product under a given pressure to the consumer network; it can also be used for transportation, storage and delivery of liquefied oxygen, nitrogen, argon, carbon dioxide.

The cryocylinder consists of an internal and external container, the space between which is filled with perlite and evacuated. Due to this, excellent storage properties of the cryoproduct are achieved.

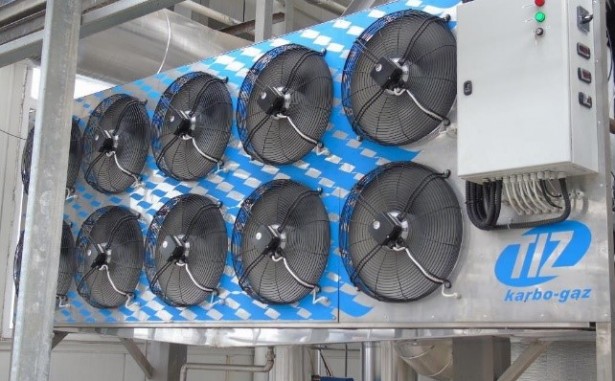

Air evaporator

Air gasifiers of the private enterprise "TIZ-Karbogaz" of the RT series are manufactured taking into account the most modern developments, which allow saving energy costs up to 95% compared to electric gasifiers, as well as minimizing gasification time, which increases the efficiency of the production process. Gasifiers of the RT series can operate autonomously, as well as as part of an automated system (with computer control). The required amount of heat is provided by air circulation in the room where the gasifier is installed. The temperature of the circulating air should not be lower than +10 C. The high-performance, energy-saving, two-section lamella heat exchanger of the RT series gasifier consists of thin-walled copper pipes and aluminum lamellas selected according to the profile. Each section is equipped with a safety valve in case of emergency pressure increase. The gasifier body is made of stainless steel and equipped with a stainless steel pan for draining condensate with the ability to connect a drainage pipe. Gasifiers can additionally be equipped with a steam or water heating system to increase the overall power. Gasifiers are designed for long-term and extremely safe operation in automatic mode without constant supervision of operating personnel.

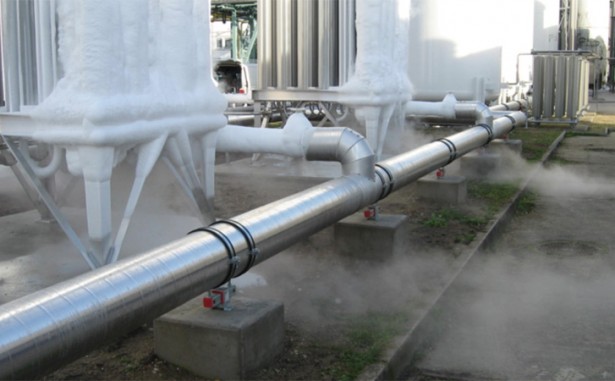

Cryogenic pipelines

The Tiz Carbogas company designs and manufactures vacuum cryogenic pipelines for LCO2, LNG, LPG, LiN, LOX. Our design office will develop vacuum pipelines for technical gases using the most modern insulating materials, and our production will ensure high quality vacuum pipelines for your future projects.

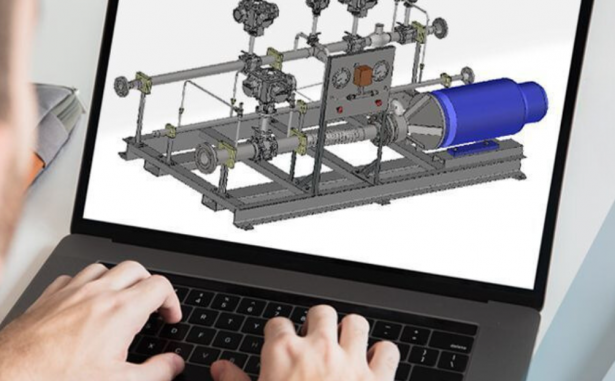

Technology projects

The Tiz Karbogaz company has a design bureau that develops engineering projects individually for each request. Our specialists will develop design solutions for the supply, storage and transportation of technical gases such as LCO2, LNG, LPG, LiN, LOX using the most modern materials and methods, and our production will ensure the highest quality of implementation of this project. Services: - analysis and consultation of clients on the technical feasibility of project development; - production of drawings and calculation of implementation; - supply of all necessary materials and components from reliable manufacturers; - a qualified installation team of specialists will perform installation and commissioning work; - consultations and maintenance of cryogenic systems 24/7.

German fittings from Goetze

PE "TiZ-Karbogaz" works closely with the German company "Goetze KG Armaturen" and uses high-quality shut-off valves, components and materials to ensure long-term, reliable and uninterrupted operation of all systems and mechanisms. High quality, durable and corrosion resistant, our valves and fittings get the job done to protect, shut off, control and switch equipment. Technical gases such as hydrogen, nitrogen and oxygen. Deep cold temperature up to -200°C. Safety and hygiene in extreme conditions Goetze offers a series with an integrated safety function that has ideal conditions for trouble-free operation. Individual work with each client allows us to select the most optimal equipment for a specific production scheme and capacity, taking into account all the needs and the smallest nuances in the production process. Cooperation with the company PE "TiZ-Karbogaz" is the key to reliable, profitable and effective mutual cooperation for many years.

Cryogenic containers for transportation and storage of LCO2, LNG, LPG, LiN, LOX, LAr

Private enterprise "Tiz-Karbogaz" produces cryogenic vessels with vacuum or two-component polyurethane foam insulation, which provides long-term storage under pressure of liquefied cryogenic gases, such as liquefied carbon dioxide (LCO2), liquefied oxygen (LOX), liquefied natural gas, liquefied propane (LPG), liquefied nitrogen (LN2) and liquefied argon (LAr). The containers are produced in capacities up to 200,000 liters respectively and comply with EU PED 97/23 (European Pressure Equipment Directive). For the Ukrainian market, vessels are manufactured in accordance with DSTU and with the permission of the State Gorpromnadzor of Ukraine. The design of the vessels meets the requirements of the “Rules for the Design and Safe Operation of Pressure Vessels”. With us you can get prompt advice and calculate cryogenic equipment, and our experienced specialists will help you choose the right equipment in accordance with your activities.
