Your reliable partner for CO₂ recovery

Our core engineering team has over 19 years of experience in CO₂ process engineering and has extensive experience in providing complete solutions — from design and manufacturing to commissioning and maintenance of various engineering projects in the cryogenic industry.

More
CO2 purification
CO2 purification
CO2 liquefaction
CO2 liquefaction
Cryogenic CO2 storage and tank manufacturing
Cryogenic CO2 storage and tank manufacturing
Gasification and CO2 reuse (recovery)
Gasification and CO2 reuse (recovery)

Help for everyone stagnation with CO₂

Safe, effective and cost-effective

Key performance indicators of the CO₂ recovery process

EIGA / ISBT

Liquid CO2 capacity – compliant with EIGA / ISBT standards
99.9%
EIGA/ISBT food quality standard
60°C
Dew point
90%
Recovery efficiency
18 BAR
Supply pressure to tanks
smoke
smoke
smoke
Why us?
We are the market leader in Ukraine
TIZ-Karbogaz is a leading supplier of CO₂ storage tanks, cryogenic equipment and CO2 recovery systems in Ukraine.
Engineering Experience
Our in-house team has over 19 years of experience in CO₂ process engineering, backed by an ISO 9001 certified manufacturing facility.
The best accessories and components
We use leading world brands: Siemens, ABB, Alfa Laval, E+H, IFM, HEROSE, GOETZE, Bitzer and others, which ensures long-term reliability.
Fast Delivery and Response
Project implementation in the fastest way, with fast on-site support and cost-effective service.
Our scope of activity and services
Turnkey projects From concept to commissioning, CO₂ production capacity (from 200 to 10,000 kg/h)
ModernizationModernization or capacity increase of existing CO₂ plants
SkidsSkid supply: compressors, purification units, liquefiers, storage tanks, etc.
Spare partsHigh-quality spare parts for compressors, carbon filter cartridges, dryers, valves, etc.
MaintenancePreventive maintenance, technical support and annual system checks of equipment operation
Our manufacturing facilities and engineering capabilities
Lviv, Ukraine
Production location
> 4000 m²
Общая площадь производственных цехов
Skilled workforce
10 engineers + 15 certified welders and installers
Cryogenic equipment
Specializing in the manufacture of cryogenic tanks and other cryogenic equipment
Quality and certification
ISO 9001 quality management system implemented. Quality control in production

General process of CO2 recovery system

The CO2 recovery line consists of a defoamer, scrubber, gas holder, oil-free piston CO2 compressor, drying columns, purification and adsorption columns, a cooling system based on a screw compressor and a closed-type cooling tower, a final CO2 purification system based on a condenser and a distillation column, cryogenic tanks for CO2 accumulation and storage, a pumping station for refueling CO2 tanker trucks, etc.

More
Project development
  • Providing services for analysis of incoming raw gas
  • Development of flow diagrams and P&ID
  • Equipment design
  • 3D modeling of the plant
Equipment
01
FAQ 01

CO2 Compressor

The CO2 compressor is a two-stage, oil-free piston compressor mounted on a frame, which is equipped with an independent intercooler and an aftercooler and an automatic condensate drain system.

At the same time, the compressor load control device is controlled depending on the filling status of the gas container.

The main components include:

  • Two-stage, oil-free piston compressor
  • Cooler
  • Automatic condensate drain system
  • Safety valves, oil pressure switches
  • High and low pressure safety switches
  • Temperature sensors
02
FAQ 02

Activated carbon filter, H2S filter

The adsorption filter consists of two parallel adsorption towers filled with activated carbon or H2S adsorbent.

The parallel adsorption towers are automatically switched between operation and regeneration using pneumatic valves, solenoid valves and PLC.

The activated carbon filter removes sulfides, ethanol and odor. The filter with H2S adsorbent provides additional ultra-deep and ultra-fine purification to ensure food-grade CO2 parameters.

Two towers operate alternately: one adsorption tower operates while the other is being regenerated.

Adsorption towers are installed on racks and consist of:

  • Adsorption tower housing
  • Adsorbent (activated carbon) or H2S adsorbent
  • Pneumatic ball valve
  • Manometer
  • Electric heater
  • Electric contact thermometer
03
FAQ 03

Drying unit

The drying unit consists of two parallel tower bodies with drying agents inside. The two-tower structure automatically switches between operation and regeneration periodically, with one tower operating while the other is regenerating. The dryer removes moisture from the CO2 gas (using molecular sieves or activated alumina), and the CO2 after deep drying has a pressure dew point of -60℃.

The molecular sieve is heated by an electric heater during regeneration, and the CO2 enters the activated carbon after blowing out of the dryer. The regeneration gas is regenerated using the non-condensable gas from the CO2 condenser. The dryer and adsorber use electric heating for automatic operation.

The drying unit includes:

  • Two drying towers with uniform gas distribution
  • Pneumatic ball valve
  • Manometer
  • Electric heating device
  • Flow regulator
  • Gas filter
  • Molecular sieve or activated alumina packing
04
FAQ 04

Refrigeration unit

The refrigeration unit is used for a mixture of water cooling + glycol, the refrigerant is freon R507A (environmentally friendly).

Refrigeration compressor type: screw compressor

The refrigeration unit is a refrigeration system installed on a frame set, which is used to liquefy CO2 gas, and the refrigerant is R507A.

Main components:

  • Screw compressor
  • Oil filter
  • Oil cooler
  • Pressure regulator
  • Solenoid valves
  • Inlet filter
  • Electric motor
  • Suction pressure sensor
  • Pressure and temperature sensor

Brand: Bitzer / Mycom


05
FAQ 05

Cooling tower

The refrigeration unit is used for a mixture of water cooling + glycol, the refrigerant is freon R507A (environmentally friendly).

Refrigeration compressor type: screw compressor

The refrigeration unit is a refrigeration system installed on a frame set, which is used to liquefy CO2 gas, and the refrigerant is R507A.

Main components:

  • Screw compressor
  • Oil filter
  • Oil cooler
  • Pressure regulator
  • Solenoid valves
  • Inlet filter
  • Electric motor
  • Suction pressure sensor
  • Pressure and temperature sensor

Brand: Bitzer / Mycom


06
FAQ 06

CO2 Evaporative Condenser

CO2 evaporative condenser is a shell-and-tube heat exchanger.

The shell-and-tube heat exchanger contains CO2 gas, and the tube-and-tube heat exchanger contains R507A refrigerant, which is supplied by the refrigeration unit. The R507A refrigerant, compressed by the refrigeration unit, expands through an expansion valve into the tube section of the CO2 evaporative condenser, where it absorbs heat and evaporates.

The inclined evaporative condenser is equipped with an automatic CO2 discharge system with a timer, which effectively discharges non-condensable gases such as O2 and N2, ensuring complete purification.

CO2 absorbs cold energy in the shell-and-tube section and liquefies. The liquefied CO2 enters the liquefied CO2 storage tank.

The main components include:

  • CO2 evaporative condenser
  • Pressure and temperature gauge
  • Fittings
  • Expansion valve
  • Shut-off valve

07
FAQ 07

PLC and software

We use Siemens PLCs in all our installations.

We develop our software according to the developed process.

We can integrate the software according to your request.


08
FAQ 08

Gas analyzer

We can supply gas analyzer for quality control of liquefied CO2 from the best European manufacturers

Liquefied CO2 quality parameters

We design our purification process in such a way that the finished product (liquefied CO2)  fully complies with EIGA / ISBT standards::

EIGA / ISBT Liquefied CO2 quality – according to EIGA / ISBT standards
Liquid CO₂
Давление
17-18 бар
Чистота
≥ 99.9 % v/v min (*)
Влажность
≤ 20 ppm v/v
Кислород
≤ 30 ppm v/v
Монооксид углерода
≤ 10 ppm v/v
Аммиак
≤ 2.5 ppm v/v
Азота оксид
≤ 2.5 ppm v/v
Азота диоксид
≤ 2.5 ppm v/v
Нелетучий остаток
≤ 10 ppm w/w
Нелетучие органические остатки
≤ 5 ppm w/w
Ацетапьдегиды
≤ 0.2 ppm v/v
Ароматические углеводы
≤ 20 ppm v/v
Диоксид серы (SO2)
≤ 1.0 ppm v/v
Внешний вид в воде
Нет цвета и мутности
Запах
Без запаха
Вкус и запах в воде
Без постороннего вкуса и запаха

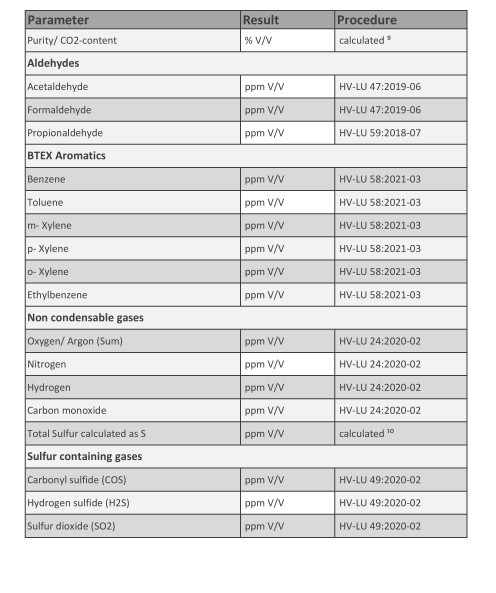

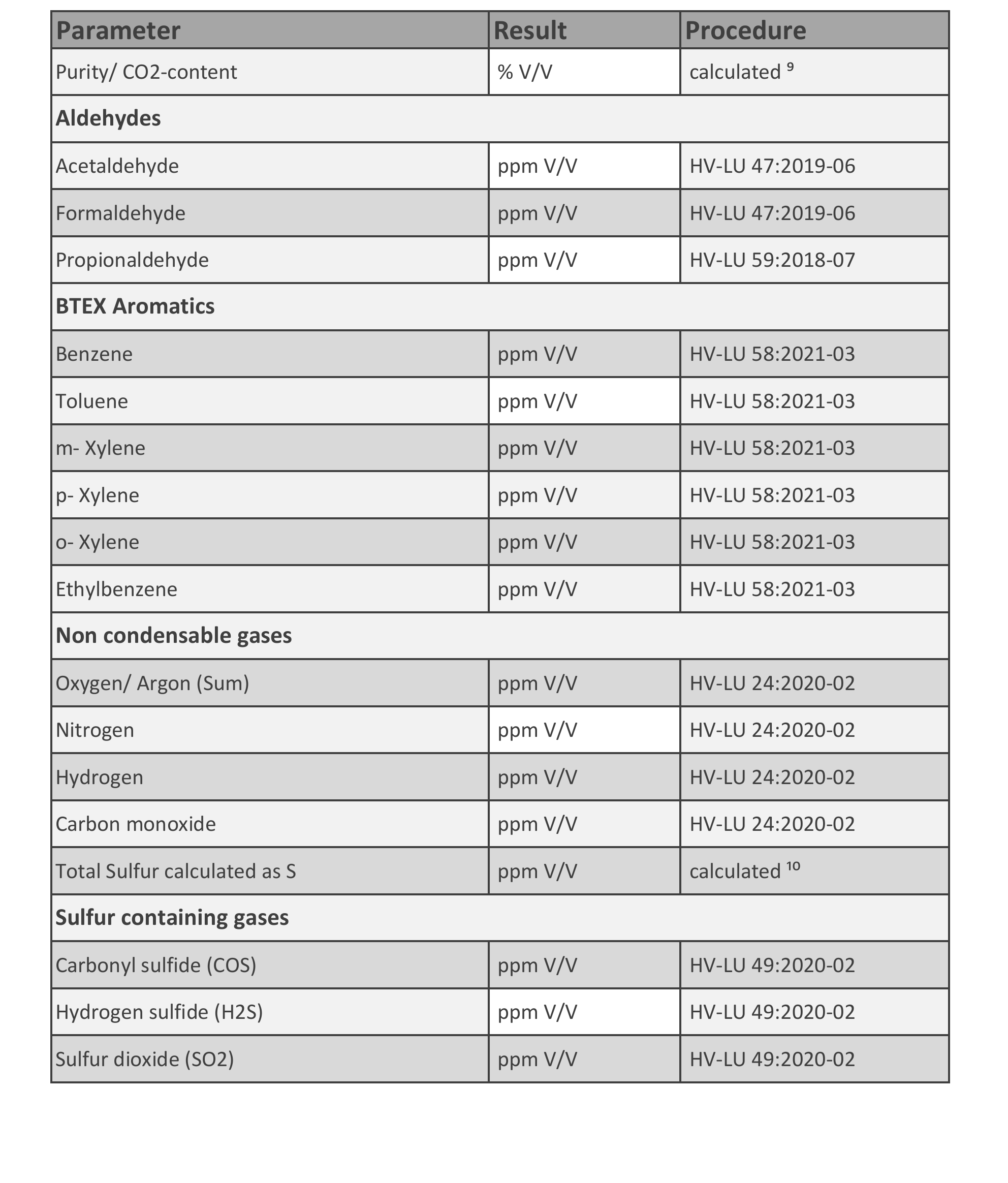

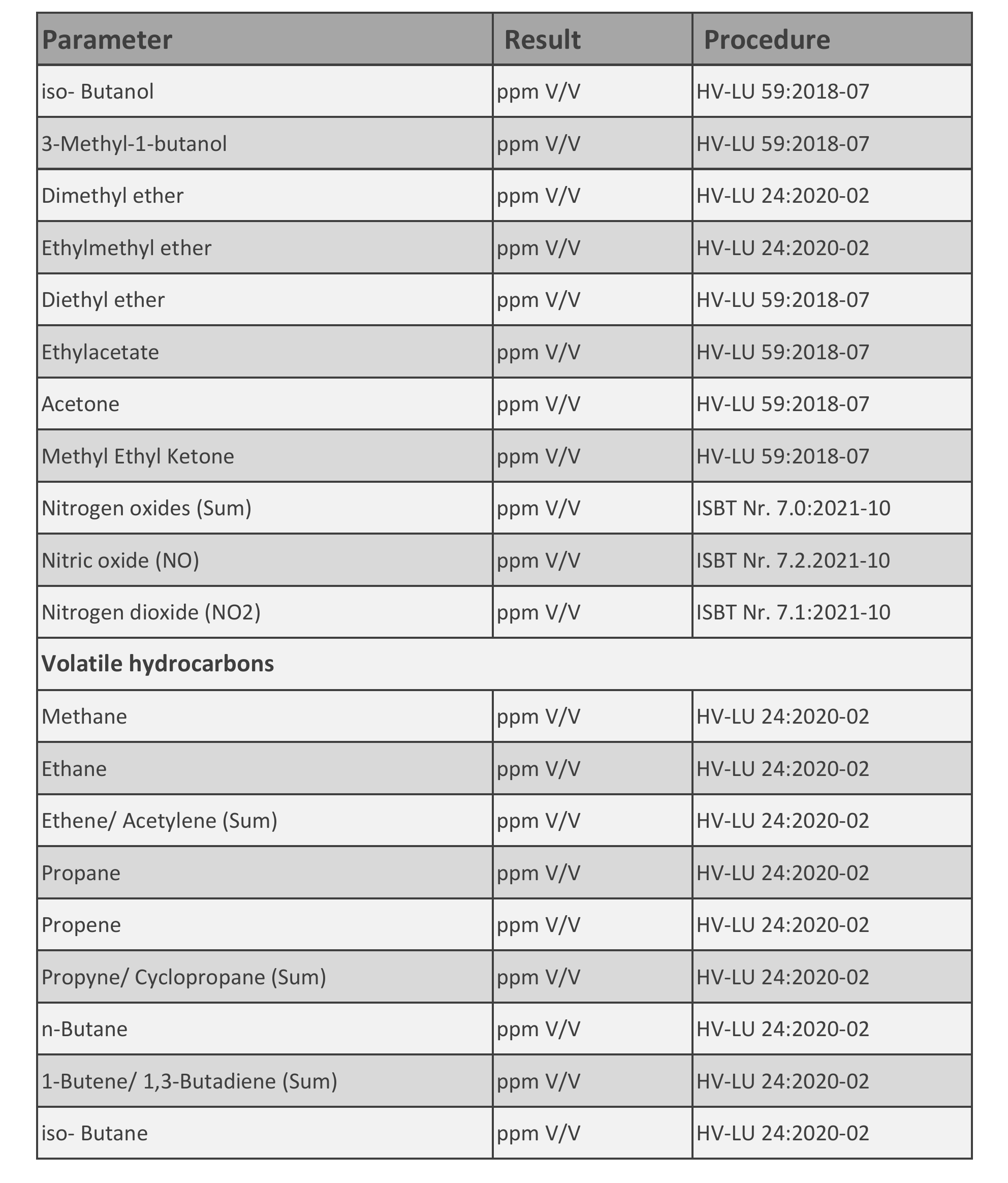

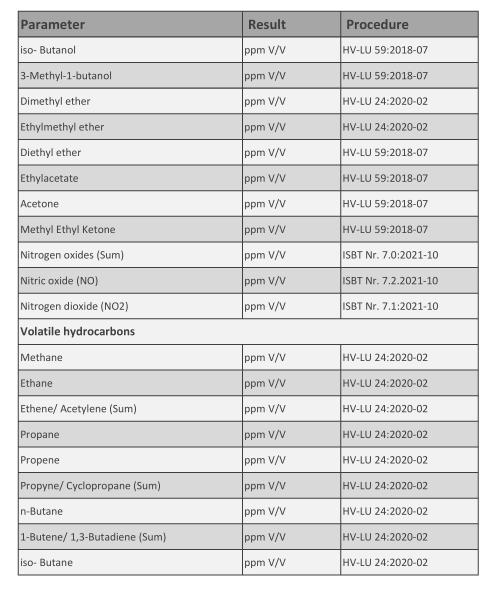

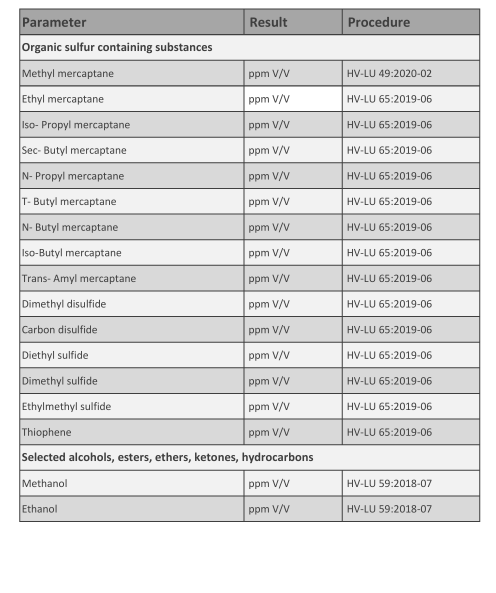

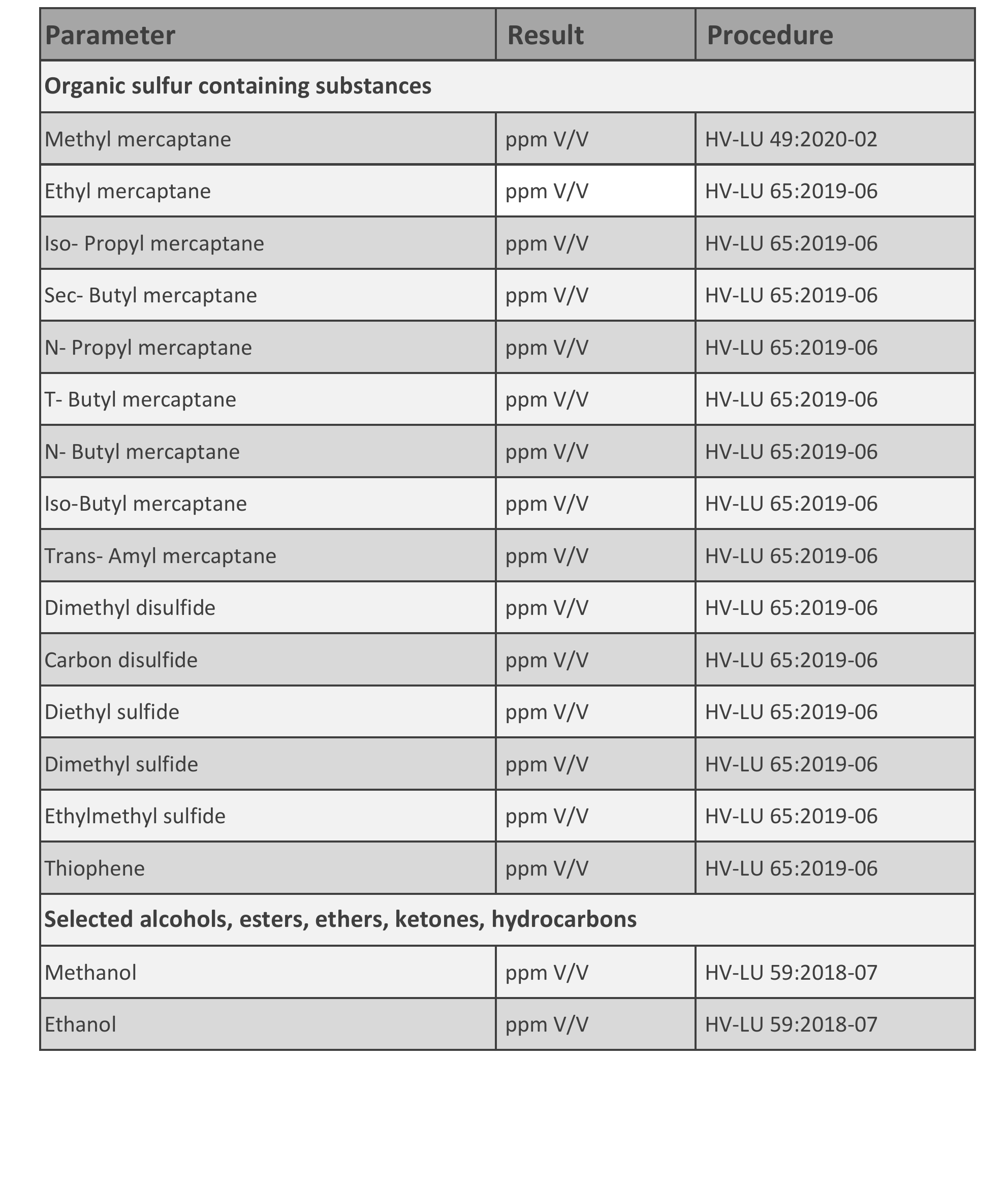

Analysis of raw or unpurified gas

For the correct design of the equipment and the purification process, the first step is the analysis of the raw gas. We perform an extensive list of analyses of the raw CO2 gas to prevent any "surprises" after the launch of our projects. We carry out the analysis in our German laboratory according to this list of parameters.

About ecology

Carbon dioxide recovery (recovery) is a modern and environmentally responsible approach to reducing atmospheric emissions. Significant amounts of CO₂ are generated during the production of food, beverages, biogas, or fertilizers. Without proper disposal, it enters the environment and increases the greenhouse effect.

Thanks to recovery technology, this gas is not emitted but reused in industrial and food processes. This allows:

- to significantly reduce greenhouse gas emissions;

- to reduce the company's carbon footprint and meet high standards;

- to conserve natural resources by reusing already produced CO₂;

- to make production more environmentally responsible and sustainable.

CO₂ recovery is not only an economic benefit, but a tangible contribution to the fight against climate change and preserving clean air for future generations. It is a technology that benefits businesses today and the environment tomorrow.

The Tiz-Karbogaz CO₂ plant implements innovative recovery solutions, helping businesses reduce their carbon footprint and transition to more environmentally friendly production.

FOR BIOETHANOL, BIOGAS PLANTS AND BREWERIES

CO2 recovery is a key process in combating climate change, capturing carbon dioxide emissions from industrial sources before they reach the atmosphere. This CO2 is compressed and either reused in various applications or safely stored, thereby reducing greenhouse gas emissions.

TIZ-Karbogaz provides assistance in implementing comprehensive CO2 recovery solutions for biogas plants, bioethanol plants or breweries, for anyone interested in reducing CO2 emissions and additionally seeking to increase their profitability.

TIZ-Karbogaz compared to other suppliers

TIZ-Karbogaz is a reliable systems supplier with extensive proven engineering experience and fast response, optimized costs, which ensures reduced risks and faster return on investment for our customers.

TIZ-Karbogaz
Other suppliers
Reliability
Time-tested stability
Frequent delays and problems
Service
Fast 24/7 support service
Slow service
Cost
Individual budget solutions
High overall cost
Time
Fastest implementation time
Unforeseen deadline
Experience
Powerful project reference
Limited industry experience
